Kali Purple SOC

Kali Purple SOC: Part 6 – Installing and Configuring Filebeat

Arion

May 14, 2023 — 2 min read

Installing Filebeat

SSH Into Kali Purple VM

Download Filebeat

curl -L -O https://artifacts.elastic.co/downloads/beats/filebeat/filebeat-8.6.1-amd64.deb

sudo dpkg -i filebeat-8.6.1-amd64.deb

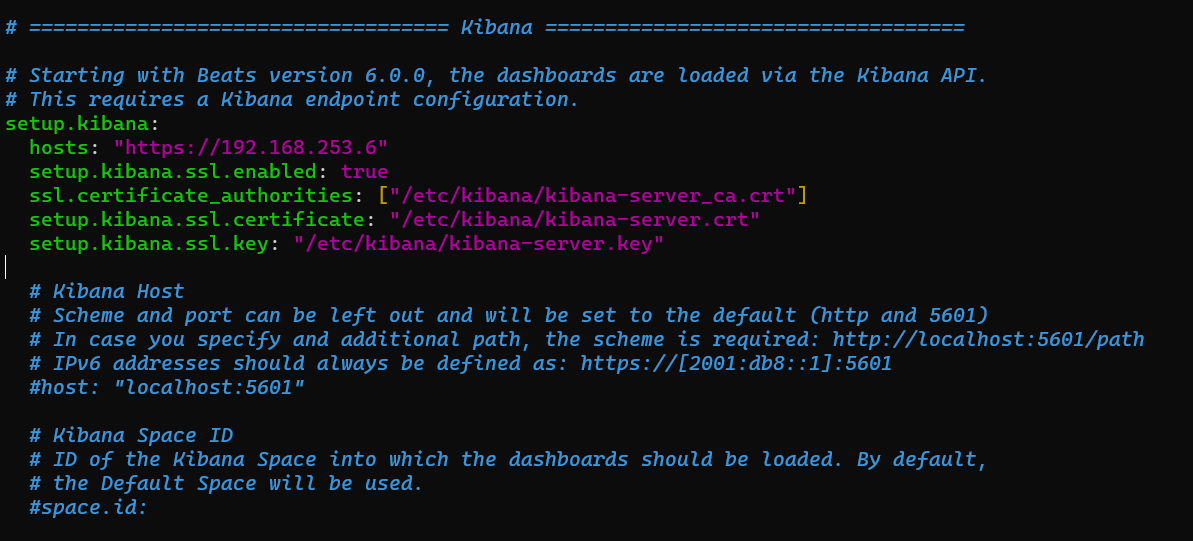

Modify /etc/filebeat/filebeat.yml to set the connection information

sudo nano /etc/filebeat/filebeat.yml

for setup.kibana

host: "https://192.168.253.6"
  setup.kibana.ssl.enabled: true
  ssl.certificate_authorities: ["/etc/kibana/kibana-server_ca.crt"]
  setup.kibana.ssl.certificate: "/etc/kibana/kibana-server.crt"
  setup.kibana.ssl.key: "/etc/kibana/kibana-server.key"

for output.elasticsearch

 hosts: ["https://192.168.253.6"]
  username: "elastic"
  password: "<your_password>"
  # If using Elasticsearch's default certificate
  ssl.ca_trusted_fingerprint: "<es_cert_fingerprint>"

To find the es cert fingerprint, open another terminal window and input this command:

sudo openssl x509 -fingerprint -sha256 -noout -in /etc/elasticsearch/certs/http_ca.crt | awk 'BEGIN { FS = "=" } ; { print $2 }' | sed 's/://g'

Enable and configure the Elasticsearch module

sudo filebeat modules enable elasticsearch

sudo nano /etc/filebeat/modules.d/elasticsearch.yml

Enable Filebeat (this will take a few minutes)

sudo systemctl enable filebeat --now

Disabling warning “Missing replica shards”

Open Elastic dashboard, click Dev Tools.

Delete all in the console field.

paste the following into the console field:

PUT _settings
{
  "number_of_replicas": 0
}

Click the Run (play) icon

Click Stack Management

Follow the instructions in the screenshots below

Once you save, click Stack Monitoring

It should look something like this:

Next, we'll be taking a look at Installing the OPNsense integration.
